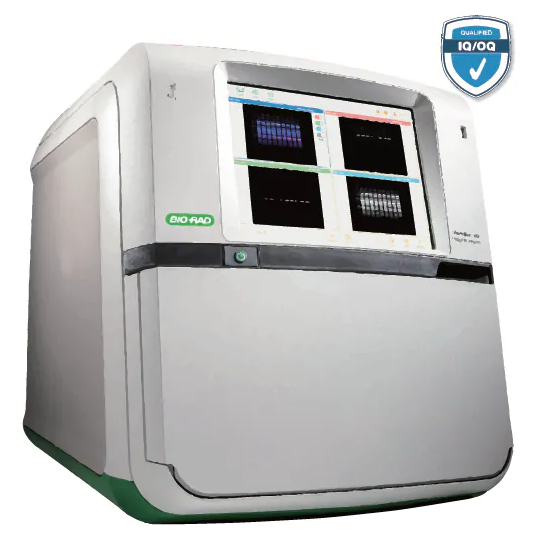

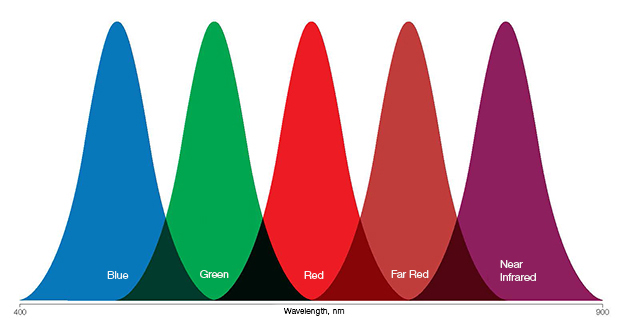

The Bio-Rad ChemiDoc series imaging systems provide exceptional imaging performance and feature an intuitive user interface. The ChemiDoc MP model supports multiple imaging techniques, including chemiluminescence, visible light imaging, stain-free imaging, and standard protein/DNA gel imaging. It also offers multi-color fluorescence capabilities that cover red, green, blue, near-infrared, and infrared (RGB+NIR/IR) wavelengths. Additionally, the system is compatible with most commercially available fluorescent dyes. Below is an illustration of the fluorescent dyes supported by the ChemiDoc MP system.

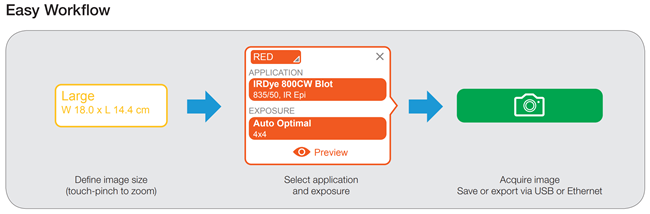

The ChemiDoc MP system features a 12-inch touchscreen panel, offering straightforward and intuitive operation. Both the ChemiDoc MP and ChemiDoc deliver sensitivity and image quality truly comparable to film-based methods, while remaining remarkably simple to use. Simply zoom the imaging area with your finger on the touchscreen; the system automatically focuses in real time. Select your application, click to expose, and obtain publication-ready images.

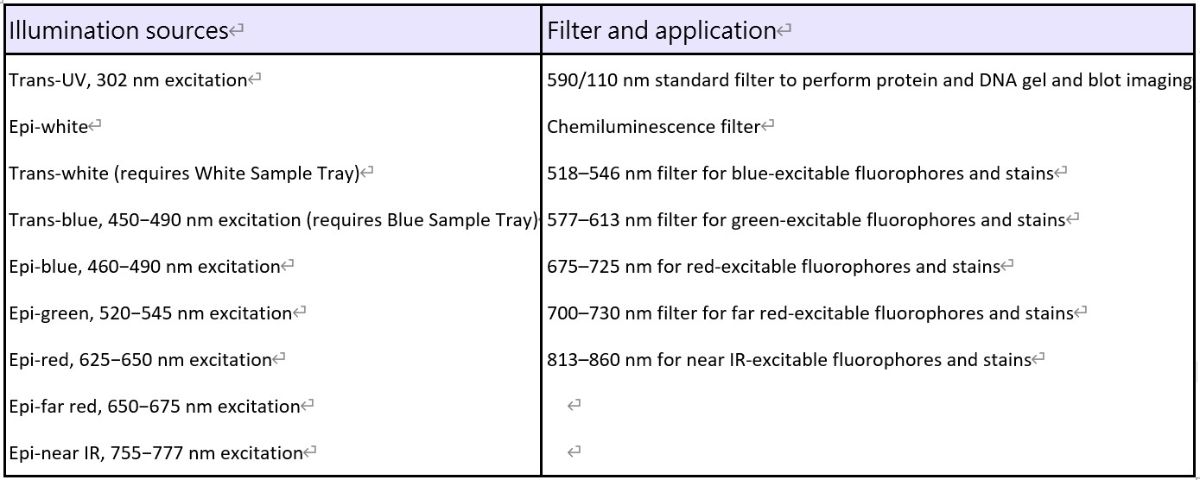

Detailed light source filter wavelengths:

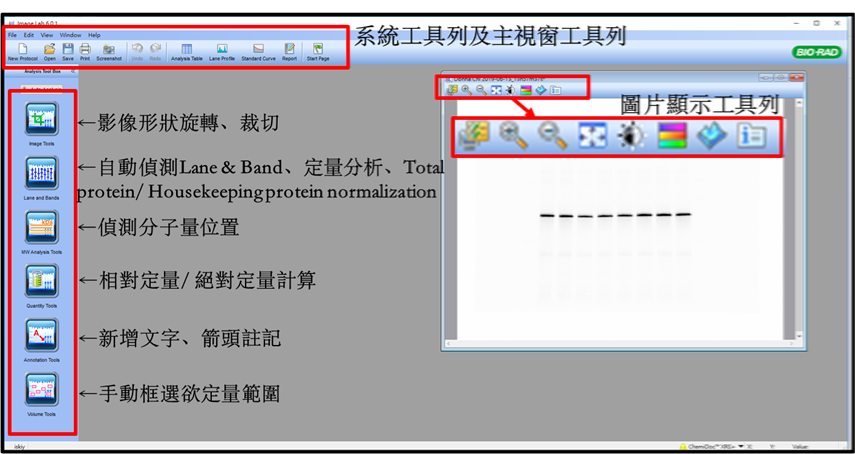

Image Lab - Image Analysis Software:
Image Lab image analysis software supports both Windows and Mac systems, with periodic updates. Beyond this imaging system, it can also process files captured by other imaging systems, analysing any uncompressed 16-bit or 8-bit greyscale TIFF files. It offers multifunctional capabilities, enabling image editing, molecular weight calculation, quantitative analysis, annotation, and generation of standardised reports. Sequential operations facilitate comprehensive image optimisation and data analysis. Output files can be saved in multiple formats, including TIF, JPEG, Excel spreadsheets, and PDF reports.
