[Guangfu] Atomic Force Microscope, VT-SPM
- Variable Temperature Scanning Probe Microscope (under ambient conditions or in high vacuum, at 100 – 1000 K)
- Abbreviation: VT SPM
- Brand: Japan SII Nanotechnology Inc.
- Model: SPA-300HV
- Instrument Expert: Prof. Jian, Wen-Bin
- Extension 56159
- Instrument Operation Technician: Liu,Hsin-Cheng
- Extension 56190
- Email: xl0553723@gmail.com
- Instrument Location: Room 009, Science Building 3 (Department of Electrophysics)
Instrument Information
Brand: Japan SII Nanotechnology Inc.
Model: SPA-300HV
Year of purchase: June 2004
Important Specifications
This set of equipment provides scanning probe microscope functions such as AFM (atomic force microscope) and MFM (magnetic force microscope) under room temperature atmosphere.
Brand: Japan SII Nanotechnology Inc.
Model: SPA-300HV
Year of purchase: June 2004
Important Specifications
This set of equipment provides scanning probe microscope functions such as AFM (atomic force microscope) and MFM (magnetic force microscope) under room temperature atmosphere.
- Purpose: Nanoscale surface morphology measurement
- Resolution: X, Y: 0.2 nm, Z: 0.01 nm (scanner: 150 um, 20 um)
- Scanning functions and probes: Contact mode atomic force microscope (AFM), Conducting contact mode atomic force microscope (C-AFM), Tapping mode atomic force microscope (DFM), Magnetic force microscope (MFM)
Services
Surface topography (atomic force microscope can reach one-nanometer resolution), surface electrical properties measurement, and surface magnetic properties measurement
Opening Hours
Surface topography (atomic force microscope can reach one-nanometer resolution), surface electrical properties measurement, and surface magnetic properties measurement
Opening Hours
- Monday to Friday: 9:00 AM – 5:00 PM
- Nights, Saturdays and Sundays: Contact instrument experts or operators
System Opening Level
- General Working Hours: It is open to on-campus users and off-campus project applicants and can be self-operated by users or by our technicians and professionals. (Levels A and D)
- Night and Holidays: It is open to on-campus users and off-campus project applicants and must be operated by our technicians and professionals. (Level D)
Level Description
- Level A: Open to students who need to use it. They can operate it on their own after training and assessment.
- Level B: Each professor nominates one student for training, while the rest operate under those who have been trained. Professors with multiple students using the instrument can request an increase in the number of students receiving training.
- Level C: The instrument administrator selects several students recommended by the professor to receive training. After passing the assessment, they can self-operate the instrument and be responsible for delegated operation service.
- Level D: The laboratory's technical staff only accept delegated services and are unavailable for general use.
| unit | Type | Fee (additional fee for probes) |
|---|---|---|
| NYCU Department of Electrophysics | self-operation | NT$600 /hr |
| entrusted operation | NT$800 /hr | |
| On-campus Units | self-operation | NT$1,000 /hr |
| entrusted operation | NT$1,200 /hr | |
| Off-campus Academic Units | entrusted operation | NT$1,500 /hr |
| Industry | entrusted operation | NT$3,000 /hr |
| Probes | NT$1,200 /piece | |
- You can bring your own probe to meet the specifications, or buy it on-site. You need to pay for the first time to buy a new probe, and then use it or replace it as appropriate.
- Usage Fee : Measurement Fee*Experiment Hours+Probe Fee
- Laboratory hours include sample preparation and archiving.
Management and Operation Methods:
Users from off-campus can use two modes: (1) Delegated Service by our technicians; (2) Apply for training. After passing the test, users can make reservations to self-operation during working hours.
Instrument Training Application Instructions:
Users from off-campus can use two modes: (1) Delegated Service by our technicians; (2) Apply for training. After passing the test, users can make reservations to self-operation during working hours.
Instrument Training Application Instructions:
- Fill in the common instrument operation application form
- Arrange training time with approval from instrument experts.
Instrument Operation Reservation
- Fill in the common instrument operation application form
- After the instrument expert approves, the usage time will be arranged.

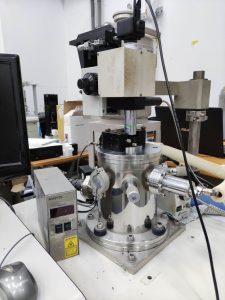

Related Image(s)：
